#include <tb_graphic.hpp>

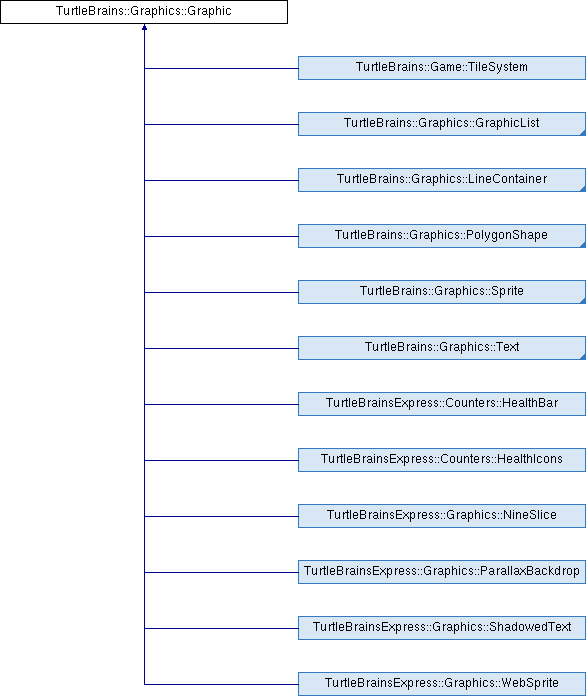

Inheritance diagram for TurtleBrains::Graphics::Graphic:

Public Member Functions
	Graphic (void)

	Graphic (const Graphic &other)

virtual	~Graphic (void)

bool	IsActive (void) const

void	SetActive (const bool isActive)

void	Update (const float deltaTime)

bool	IsVisible (void) const

void	SetVisible (const bool isVisible)

void	Render (void) const

const tbMath::Vector2 &	GetPosition (void) const

void	SetPosition (const float x, const float y)

void	SetPosition (const tbMath::Vector2 &position)

const tbMath::Vector2 &	GetOrigin (void) const

void	SetOrigin (const AnchorLocation &anchor, const tbMath::Vector2 &offset=tbMath::Vector2::Zero())

void	SetOrigin (const float originX, const float originY)

void	SetOrigin (const tbMath::Vector2 &origin)

float	GetDepth (void) const

void	SetDepth (const float newDepth)

const tbMath::Vector2 &	GetScale (void) const

void	SetScale (const float scale)

void	SetScale (const tbMath::Vector2 &scale)

void	SetScale (const float scaleX, const float scaleY)

float	GetRotation (void) const

void	SetRotation (const float rotation)

void	SetScroll (const float scroll)

void	SetScroll (const float scrollX, const float scrollY)

bool	IsRelative (void) const

const Color &	GetColor (void) const

virtual void	SetColor (const tbGraphics::Color &newColor)

virtual PixelSpace	GetPixelWidth (void) const

virtual PixelSpace	GetPixelHeight (void) const

float	GetWidth (void) const

float	GetHeight (void) const

float	GetScaledWidth (void) const

float	GetScaledHeight (void) const

bool	UnstableIsPointContained (const tbMath::Vector2 &point) const

Protected Member Functions
virtual void	OnUpdate (const float deltaTime)

virtual void	OnRender (void) const =0

virtual void	ApplyTransform (void) const

virtual void	PopTransform (void) const

Detailed Description

The Graphic is an abstract interface for Text, Sprite and other graphical objects that can be updated and displayed.

Constructor & Destructor Documentation

TurtleBrains::Graphics::Graphic::Graphic ( void )

Constructs a Graphic object that starts out active and visible with a position of (0.0f, 0.0f) and depth at 0.0f.

TurtleBrains::Graphics::Graphic::Graphic ( const Graphic & other )

Constructs a Graphic object by copying the details from the other Graphic object.

Parameters

other The Graphic object to copy and mimic.

virtual TurtleBrains::Graphics::Graphic::~Graphic ( void )

virtual

Destroys the Graphic object by doing nothing since no resources need to be cleaned up.

Member Function Documentation

virtual void TurtleBrains::Graphics::Graphic::ApplyTransform ( void ) const

protectedvirtual

Applies the objects scaling, rotation, camera and translation transform before it gets rendered. This is automatically called in Render() before OnRender() gets called if the object is visible.

const Color& TurtleBrains::Graphics::Graphic::GetColor ( void ) const

Returns the color of the Graphic which defaults to White (0xFFFFFFFF) but can be changed with SetColor().

float TurtleBrains::Graphics::Graphic::GetDepth ( void ) const

Returns the depth, Z value, of the Graphic object.

float TurtleBrains::Graphics::Graphic::GetHeight ( void ) const

inline

This is really the height of the graphic object in PixelSpace converted to a floating point for convenience.

const tbMath::Vector2& TurtleBrains::Graphics::Graphic::GetOrigin ( void ) const

Returns the origin, or hot-spot, of the Graphic. The origin is an offset from where the graphic will be position by and rotated around.

virtual PixelSpace TurtleBrains::Graphics::Graphic::GetPixelHeight ( void ) const

inlinevirtual

This should be overridden to return the height of the graphic in PixelSpace units to be used in placement and anchor point computations.

Reimplemented in TurtleBrains::Graphics::Sprite, TurtleBrains::Graphics::Text, TurtleBrainsExpress::Counters::HealthBar, TurtleBrainsExpress::Graphics::WebSprite, TurtleBrains::Graphics::GraphicList, TurtleBrainsExpress::Graphics::NineSlice, TurtleBrains::Graphics::PolygonShape, and TurtleBrainsExpress::Graphics::ShadowedText.

virtual PixelSpace TurtleBrains::Graphics::Graphic::GetPixelWidth ( void ) const

inlinevirtual

This should be overridden to return the width of the graphic in PixelSpace units to be used in placement and anchor point computations.

Reimplemented in TurtleBrains::Graphics::Sprite, TurtleBrains::Graphics::Text, TurtleBrainsExpress::Counters::HealthBar, TurtleBrainsExpress::Graphics::WebSprite, TurtleBrains::Graphics::GraphicList, TurtleBrainsExpress::Graphics::NineSlice, TurtleBrains::Graphics::PolygonShape, and TurtleBrainsExpress::Graphics::ShadowedText.

const tbMath::Vector2& TurtleBrains::Graphics::Graphic::GetPosition ( void ) const

Returns the position of the sprite as a Vector2 object.

float TurtleBrains::Graphics::Graphic::GetRotation ( void ) const

inline

Returns the current rotation/orientation of the sprite.

const tbMath::Vector2& TurtleBrains::Graphics::Graphic::GetScale ( void ) const

inline

Returns the scale of the of the graphic as a Vector2 for horizontal (x component) and vertical (y component) scaling.

float TurtleBrains::Graphics::Graphic::GetScaledHeight ( void ) const

inline

This is the height of the graphic object multiplied by the vertical scale factor.

float TurtleBrains::Graphics::Graphic::GetScaledWidth ( void ) const

inline

This is the width of the graphic object multiplied by the horizontal scale factor.

float TurtleBrains::Graphics::Graphic::GetWidth ( void ) const

inline

This is really the width of the graphic object in PixelSpace converted to a floating point for convenience.

bool TurtleBrains::Graphics::Graphic::IsActive ( void ) const

Returns true if the Graphic is currently active and needing to be updated, or false if the OnUpdate() calls should be skipped.

bool TurtleBrains::Graphics::Graphic::IsRelative ( void ) const

This will return true if the Graphic object is relative to it's parent object, such as the contained GraphicList. Currently all Graphics are always relative, although this may be updated in future versions of TurtleBrains.

bool TurtleBrains::Graphics::Graphic::IsVisible ( void ) const

Returns true if the Graphic is currently visible and needing to be displayed, or false if the OnRender() calls should be skipped.

virtual void TurtleBrains::Graphics::Graphic::OnRender ( void ) const

protectedpure virtual

This must be overridden by a subclass to actually display the Graphic on the screen. The function will be invoked when Render() is called and the object IsVisible().

Note: OnRender() should not be called directly, even from a subclass. Use Render() which will first check if the Graphic IsVisible() before displaying with OnRender().

Implemented in TurtleBrains::Game::Entity, TurtleBrains::Game::TileSystem, TurtleBrains::Graphics::Sprite, TurtleBrains::Graphics::OutlinedPolygonShape, TurtleBrainsExpress::Counters::HealthIcons, TurtleBrains::Graphics::Text, TurtleBrainsExpress::Counters::HealthBar, TurtleBrainsExpress::Graphics::ParallaxBackdrop, TurtleBrains::Game::GameScene, TurtleBrains::Graphics::GraphicList, TurtleBrainsExpress::Graphics::WebSprite, TurtleBrains::Graphics::PolygonShape, TurtleBrainsExpress::Graphics::NineSlice, TurtleBrains::Graphics::LineContainer, and TurtleBrainsExpress::Graphics::ShadowedText.

virtual void TurtleBrains::Graphics::Graphic::OnUpdate ( const float deltaTime )

protectedvirtual

This should be overridden by a subclass if it needs to perform any updates per frame before displaying / rendering a new frame. This function will be invoked when Update() is called and the object IsActive().

Note: OnUpdate() should not be called directly, even from a subclass. Use Update() which will first check if the Graphic IsActive() before updating with OnUpdate().

Reimplemented in TurtleBrains::Game::Entity, TurtleBrains::Graphics::AnimatedSprite, TurtleBrainsExpress::Counters::Counter, TurtleBrains::Game::EntityManager, TurtleBrainsExpress::Counters::HealthBar, TurtleBrains::Game::GameScene, and TurtleBrains::Graphics::GraphicList.

virtual void TurtleBrains::Graphics::Graphic::PopTransform ( void ) const

protectedvirtual

Removes all transformations that were applied during ApplyTransform as if nothing even happened. This is automatically called in Render() after OnRender() was called if the object is visible.

void TurtleBrains::Graphics::Graphic::Render ( void ) const

First checks to see if the object IsVisible() and calls OnRender() if it is. If the object is not visible nothing happens.

void TurtleBrains::Graphics::Graphic::SetActive ( const bool isActive )

Sets a flag that when false causes the Graphic to skip the OnUpdate() calls and when true will proceed with the OnUpdate() calls. Defaults to true, may lead to better performance if false when the object does not need to be updated.

virtual void TurtleBrains::Graphics::Graphic::SetColor ( const tbGraphics::Color & newColor )

virtual

Change the color of the sprite so it can fade in/out with alpha, or modify the color for other effects.

Reimplemented in TurtleBrains::Graphics::Text, TurtleBrains::Graphics::GraphicList, TurtleBrains::Graphics::PolygonShape, TurtleBrains::Graphics::LineContainer, and TurtleBrainsExpress::Graphics::ShadowedText.

void TurtleBrains::Graphics::Graphic::SetDepth ( const float newDepth )

Sets the depth of the graphic object which should be within a range of -1.0f for objects far in the background and 1.0f for the objects nearest to the camera. The default value is 0.0f.

Parameters

newDepth The depth of the Graphic object, smaller being farther away and larger being closer to the camera.

void TurtleBrains::Graphics::Graphic::SetOrigin	(	const AnchorLocation &	anchor,
		const tbMath::Vector2 &	offset = `tbMath::Vector2::Zero()`
	)

Sets the origin or hot-spot of the sprite. This is an offset where the sprite will be positioned by and rotated around. The AnchorLocation will describe where the origin offset with a 9 locations, the four corners, and center points of each edge.

void TurtleBrains::Graphics::Graphic::SetOrigin	(	const float	originX,
		const float	originY
	)

inline

Sets the origin or a hot-spot of the sprite. This is an offset where the sprite will be positioned by and rotated around.

Note: Defaults to center, may default to top-left in future versions.

void TurtleBrains::Graphics::Graphic::SetOrigin ( const tbMath::Vector2 & origin )

inline

Sets the origin or a hot-spot of the sprite. This is an offset where the sprite will be positioned by and rotated around.

Note: Defaults to center, may default to top-left in future versions.

void TurtleBrains::Graphics::Graphic::SetPosition	(	const float	x,
		const float	y
	)

Sets the position of the object to the x and y location in world space.

Parameters

x	The position in the world along the worlds X-axis. 0 being the origin, by default the world X-axis is horizontal with 0 being the left edge of the screen and positive numbers toward the right.
y	The position in the world along the worlds Y-axis. 0 being the origin, by default the world Y-axis is vertical with 0 being the top edge of the screen and positive numbers toward the bottom.

void TurtleBrains::Graphics::Graphic::SetPosition ( const tbMath::Vector2 & position )

Sets the position of the object to the location in world space with the given x and y components of the Vector2.

Parameters

position Where in the world along the each axis the Graphic should be placed. By default the world X-axis is horizontal with 0 being the left edge of the screen and positive numbers toward the right and the Y-axis is vertical with 0 being the top edge of the screen and positive numbers toward the bottom.

void TurtleBrains::Graphics::Graphic::SetRotation ( const float rotation )

inline

Set the rotation/orientation of the sprite so it can rotate around the game world and animate things such as windmills, tires, etc.

Parameters

rotation The angle in degrees of the sprite, positive values rotate clockwise.

void TurtleBrains::Graphics::Graphic::SetScale ( const float scale )

Changes the scaling of the sprite uniformly on each axis.

Parameters

scale The amount of scaling to apply, 1.0 is normal scale, 0.5 is half size and 2.0 is double.

Note: Triggers an error condition if scale is a negative value, should use SetFlipped on sprite for this effect.

void TurtleBrains::Graphics::Graphic::SetScale ( const tbMath::Vector2 & scale )

Changes the scaling of the sprite on each axis separately.

Parameters

scale The amount of scaling to apply on the X-axis or Y-axis of the graphic stored in the X and Y components of the Vector2 respectively: 1.0 is normal scale, 0.5 is half size and 2.0f is double.

Note: Triggers an error condition if scale is a negative value, should use SetFlipped on sprite for this effect.

void TurtleBrains::Graphics::Graphic::SetScale	(	const float	scaleX,
		const float	scaleY
	)

Changes the scaling of the sprite on each axis separately, this is a convenient function that will call SetScale(tbMath::Vector2&) version.

Parameters

scaleX	The amount of scaling to apply on the X-axis, 1.0 is normal scale, 0.5 is half size.
scaleY	The amount of scaling to apply on the Y-axis, 1.0 is normal scale, 2.0 is double size.

Note: Triggers an error condition if scale is a negative value, should use SetFlipped on sprite for this effect.

void TurtleBrains::Graphics::Graphic::SetScroll ( const float scroll )

inline

This value changes how the graphic interacts with the camera, a scroll value of 0 will attach the graphic to the camera which can be useful for UI graphic objects. A scroll value of 1 will scroll at a normal rate as the camera moves around while other values can create a parallax effect.

void TurtleBrains::Graphics::Graphic::SetScroll	(	const float	scrollX,
		const float	scrollY
	)

inline

This value changes how the graphic interacts with the camera, a scroll value of 0 will attach the graphic to the camera which can be useful for UI graphic objects. A scroll value of 1 will scroll at a normal rate as the camera moves around while other values can create a parallax effect.

Parameters

scrollX	The scroll value for horizontal movement/interaction with the camera.
scrollY	The scroll value for vertical movement/interaction with the camera.

void TurtleBrains::Graphics::Graphic::SetVisible ( const bool isVisible )

Sets a flag that when false causes the Graphic to skip the OnRender() calls and when true will proceed with the OnRender() calls. Defaults to true, may lead to better performance if false when the object does not need to be displayed.

void TurtleBrains::Graphics::Graphic::Update ( const float deltaTime )

First checks to see if the object IsActive() and calls OnUpdate() if it is. If the object is not active nothing happens.
