#include <tb_text.hpp>

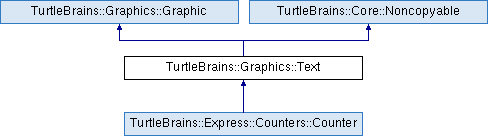

Inheritance diagram for TurtleBrains::Graphics::Text:

Public Types
enum class	BaselineFrom { Top , Center , Bottom }

Public Member Functions
	Text (const String &text=tb_string(""), const FontSize pointSize=DefaultFontSize(), const String &fontFilepath=DefaultFontFile())

virtual	~Text (void)

String	GetText (void) const

String	GetFont (void) const

FontSize	GetPointSize (void) const

float	Unstable_GetBaseline (const BaselineFrom from=BaselineFrom::Top) const

float	Unstable_GetScaledBaseline (const BaselineFrom from=BaselineFrom::Top) const

void	SetText (const String &text, const tbGraphics::AnchorLocation &alignment, const FontSize pointSize, const String &fontFilepath)

void	SetText (const String &text, const FontSize pointSize, const String &fontFilepath)

void	SetText (const String &text, const FontSize pointSize)

void	SetText (const String &text)

void	SetAlignment (const AnchorLocation &alignment)

virtual void	SetColor (const Color &newColor) override

void	SetColor (const Color &topColor, const Color &bottomColor)

const Color &	GetOutlineColor (void) const

void	SetOutlineColor (const Color &outlineColor)

float	GetOutlineThickness (void) const

void	SetOutlineThickness (const float thickness)

const Color &	GetShadowColor (void) const

void	SetShadowColor (const Color &shadowColor)

Math::Vector2	GetShadowOffset (void) const

void	SetShadowOffset (const Math::Vector2 &shadowOffset)

void	SetShadowOffset (const float offsetX, const float offsetY)

virtual PixelSpace	GetPixelWidth (void) const override

virtual PixelSpace	GetPixelHeight (void) const override

Public Member Functions inherited from TurtleBrains::Graphics::Graphic
	Graphic (void)

	Graphic (const Graphic &other)=default

virtual	~Graphic (void)=default

Graphic &	operator= (const Graphic &other)=default

bool	IsActive (void) const

void	SetActive (const bool isActive)

void	Update (const float deltaTime)

bool	IsVisible (void) const

void	SetVisible (const bool isVisible)

void	Render (void) const

const tbMath::Vector2 &	GetPosition (void) const

void	SetPosition (const float x, const float y)

void	SetPosition (const tbMath::Vector2 &position)

const tbMath::Vector2 &	GetOrigin (void) const

void	SetOrigin (const AnchorLocation &anchor, const float offsetX, const float offsetY)

void	SetOrigin (const AnchorLocation &anchor, const tbMath::Vector2 &offset=tbMath::Vector2::Zero())

void	SetOrigin (const float originX, const float originY)

void	SetOrigin (const tbMath::Vector2 &origin)

float	GetDepth (void) const

void	SetDepth (const float newDepth)

const tbMath::Vector2 &	GetScale (void) const

void	SetScale (const float scale)

void	SetScale (const tbMath::Vector2 &scale)

void	SetScale (const float scaleX, const float scaleY)

tbMath::Angle	GetRotation (void) const

void	SetRotation (const tbMath::Angle &angle)

void	SetScroll (const float scroll)

void	SetScroll (const float scrollX, const float scrollY)

bool	IsRelative (void) const

const Color &	GetColor (void) const

float	GetWidth (void) const

float	GetHeight (void) const

float	GetScaledWidth (void) const

float	GetScaledHeight (void) const

tbMath::Vector2	GetAnchorPosition (const tbGraphics::AnchorLocation &anchor, const float offsetX, const float offsetY) const

tbMath::Vector2	GetAnchorPosition (const tbGraphics::AnchorLocation &anchor, const tbMath::Vector2 &offset=tbMath::Vector2::Zero()) const

bool	UnstableIsPointContained (const tbMath::Vector2 &point) const

Static Public Member Functions
static FontSize	DefaultFontSize (void)

static const String &	DefaultFontFile (void)

static void	SetLineHeightForFont (const String &fontFilepath, const float multiplier)

static void	CreateGraphicsContext (void)

static void	DestroyGraphicsContext (void)

Protected Member Functions
virtual void	OnRender (void) const override

Protected Member Functions inherited from TurtleBrains::Graphics::Graphic
virtual void	OnUpdate (const float deltaTime)

virtual void	ApplyTransform (void) const

virtual void	PopTransform (void) const

Detailed Description

The basic TextObject provides a minimalistic, but powerful true-type font api, each instance of the TextObject creates a GL texture that will be rendered to the screen as appropriate. It does take a little overhead to create the TextObject, so don't create a bunch of them over and over each frame.

Note: the Constructor seems to take a lot of parameters, but the primary use case in mind with the particular design is for the TextObject to be derived and changed so only the first parameter, text, is actually used.

class MySpecialTextObject : public TextObject { public: MySpecialText(const String& text) : TextObject(text, "Path/To/Some/Font.ttf", 20.0f) { } }

Constructor & Destructor Documentation

◆ Text()

TurtleBrains::Graphics::Text::Text	(	const String &	text = `tb_string("")`,
		const FontSize	pointSize = `DefaultFontSize()`,
		const String &	fontFilepath = `DefaultFontFile()`
	)

explicit

This constructor does all the heavy lifting for the TextObject. If the font specified by fontFilepath is not loaded, it will be loaded, and then a small GL texture will be rasterized and stored to be used by the Draw() method. There are several ways the constructor can fail, and if it does fail the tb_error_if behavior will be invoked, either throwing exceptions, asserts, or other.

Parameters

text	A string representing the actual letters/symbols to be displayed by the object.
fontFilepath	The filepath to the truetype-font to use for this text object, file must exist or an error condition will be triggered. Set as kDefaultFontFile, the font will be the default font as supplied by TurtleBrains.
pointSize	How large this TextObject should be rasterized at.

◆ ~Text()

virtual TurtleBrains::Graphics::Text::~Text ( void )

virtual

Cleans up any resources used by the Text object, with the current exception that a Font will remain loaded for other Text objects to use. This will likely change in the future to unload Fonts, except for the default font, that have no Text objects referencing.

Member Function Documentation

◆ CreateGraphicsContext()

static void TurtleBrains::Graphics::Text::CreateGraphicsContext ( void )

static

TODO: TurtleBrains: Documentation: Find a better name and teach the user how to use this.

◆ DefaultFontFile()

static const String& TurtleBrains::Graphics::Text::DefaultFontFile ( void )

static

The default font file automatically created by TurtleBrains if a Text object is created with default.

◆ DefaultFontSize()

static FontSize TurtleBrains::Graphics::Text::DefaultFontSize ( void )

static

the default font size for a Text object created without specifying a size.

◆ GetFont()

String TurtleBrains::Graphics::Text::GetFont ( void ) const

inline

Returns the filepath of the font being used to display the text.

Note: To change the font you can use SetText overload and pass in the desired font which requires rasterizing a new texture.

◆ GetOutlineColor()

const Color& TurtleBrains::Graphics::Text::GetOutlineColor ( void ) const

Note: The following set of functions are only available if TurtleBrains Text has SDF support which may be disabled because it is very early in development and has had some performance issues. 2025-10-27

◆ GetPixelHeight()

virtual PixelSpace TurtleBrains::Graphics::Text::GetPixelHeight ( void ) const

overridevirtual

Returns the height of the text in PixelSpace which may include some padding around the edges.

Reimplemented from TurtleBrains::Graphics::Graphic.

◆ GetPixelWidth()

virtual PixelSpace TurtleBrains::Graphics::Text::GetPixelWidth ( void ) const

overridevirtual

@end of set

Returns the width of the text in PixelSpace which may include some padding around the edges.

Reimplemented from TurtleBrains::Graphics::Graphic.

◆ GetPointSize()

FontSize TurtleBrains::Graphics::Text::GetPointSize ( void ) const

inline

Returns the size of the font being displayed.

Note: To change the font you can use SetText overload and pass in the desired size which requires rasterizing a new texture.

◆ GetText()

String TurtleBrains::Graphics::Text::GetText ( void ) const

inline

Returns the string that the text object is displaying.

◆ OnRender()

virtual void TurtleBrains::Graphics::Text::OnRender ( void ) const

overrideprotectedvirtual

Draws the precomputed image from the constructor to the screen. The location of the TextObject is determined by the last call to SetPosition(), as is the color with SetColor().

Implements TurtleBrains::Graphics::Graphic.

◆ SetColor()

virtual void TurtleBrains::Graphics::Text::SetColor ( const Color & newColor )

overridevirtual

Change the color of the sprite so it can fade in/out with alpha, or modify the color for other effects.

Reimplemented from TurtleBrains::Graphics::Graphic.

◆ SetLineHeightForFont()

static void TurtleBrains::Graphics::Text::SetLineHeightForFont	(	const String &	fontFilepath,
		const float	multiplier
	)

static

Change the line-height of a Font underneath ALL text objects that use that font. This only effects Text objects that have multiple lines in their string, separated by '
'.

Parameters

multiplier is 1.0 to represent the line height directly from ttf font file, smaller will make the lines scrunch up and larger spaces them out even further. This effects ALL text objects with the font.

◆ SetText() [1/4]

void TurtleBrains::Graphics::Text::SetText ( const String & text )

◆ SetText() [2/4]

void TurtleBrains::Graphics::Text::SetText	(	const String &	text,
		const FontSize	pointSize
	)

◆ SetText() [3/4]

void TurtleBrains::Graphics::Text::SetText	(	const String &	text,
		const FontSize	pointSize,
		const String &	fontFilepath
	)

◆ SetText() [4/4]

void TurtleBrains::Graphics::Text::SetText	(	const String &	text,
		const tbGraphics::AnchorLocation &	alignment,
		const FontSize	pointSize,
		const String &	fontFilepath
	)

SetText is the heavy lifter of the object, it actually creates the small GL texture for of the rasterized letters/symbols from the true-type font and prepares everything to be displayed. It can be a fairly expensive call, so avoid changing the text, size or font when possible.

Parameters

text	the string of letters to display when rendered.
pointSize	is optional to change the size of the text should when rasterized. This will effect the width and height of the displayed text.
fontFilepath	is optional to change the font of the text object. If supplied an empty string "" will use the kDefaultFontFile.

Note: Rasterizing the text is the heavy lifter of the Text object and should only be called when needed.

◆ Unstable_GetBaseline()

float TurtleBrains::Graphics::Text::Unstable_GetBaseline ( const BaselineFrom from = BaselineFrom::Top ) const

Note: BaselineFrom::Bottom will be negative value. The concept being the "direction" to baseline always points downward, no matter which anchor position it is calculated from. This allows you to account for positioning the text by always subtracting the baseline value.
