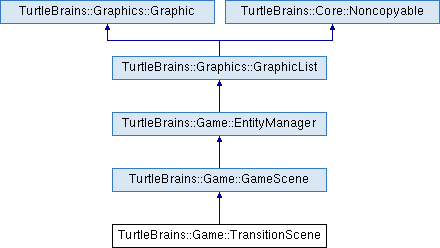

Inheritance diagram for TurtleBrains::Game::TransitionScene:

Public Member Functions
bool	IsTransitionStarted (void) const

virtual bool	IsTransitionFinished (void) const =0

Public Member Functions inherited from TurtleBrains::Game::GameScene
	GameScene (void)

virtual	~GameScene (void)=0

Public Member Functions inherited from TurtleBrains::Game::EntityManager
	EntityManager (void)

virtual	~EntityManager (void)

void	ClearEntities (void)

void	AddEntity (Entity *entity)

void	AddEntity (Entity &entity)

void	RemoveEntity (Entity *entity)

void	RemoveEntities (const EntityType &byType=Entity::kInvalidType)

void	EntityTypeChanged (Entity &entity, const EntityTypeContainer &oldTypes)

EntityList	GetAllEntities (void)

EntityList	GetEntitiesByType (const EntityType &byType)

EntityList	GetEntitiesAt (const tbMath::Vector2 &point, const EntityType &byType=Entity::kInvalidType, bool onlyCollidableEntities=false)

EntityList	GetEntitiesWithin (const tbMath::Vector2 &center, const float radius, const EntityType &byType=Entity::kInvalidType, bool onlyCollidableEntities=false)

EntityList	GetEntitiesWithin (const tbMath::Vector2 &center, const float width, const float height, const EntityType &byType=Entity::kInvalidType, bool onlyCollidableEntities=false)

void	Simulate (void)

Public Member Functions inherited from TurtleBrains::Graphics::GraphicList
	GraphicList (void)

virtual	~GraphicList (void)

void	ClearGraphics (void)

void	AddGraphic (Graphic *graphic)

void	AddGraphic (std::unique_ptr< Graphic > &&graphic)

void	AddGraphic (Graphic &graphic)

void	RemoveGraphic (Graphic *graphic)

void	SetOrigin (const AnchorLocation &anchor, const float offsetX, const float offsetY)

void	SetOrigin (const AnchorLocation &anchor, const tbMath::Vector2 &offset=tbMath::Vector2::Zero())

void	SetOrigin (const float originX, const float originY)

void	SetOrigin (const tbMath::Vector2 &origin)

virtual void	SetColor (const tbGraphics::Color &newColor) override

virtual PixelSpace	GetPixelWidth (void) const override

virtual PixelSpace	GetPixelHeight (void) const override

void	RecalculateWidthAndHeight (void)

Public Member Functions inherited from TurtleBrains::Graphics::Graphic
	Graphic (void)

	Graphic (const Graphic &other)=default

virtual	~Graphic (void)=default

Graphic &	operator= (const Graphic &other)=default

bool	IsActive (void) const

void	SetActive (const bool isActive)

void	Update (const float deltaTime)

bool	IsVisible (void) const

void	SetVisible (const bool isVisible)

void	Render (void) const

const tbMath::Vector2 &	GetPosition (void) const

void	SetPosition (const float x, const float y)

void	SetPosition (const tbMath::Vector2 &position)

const tbMath::Vector2 &	GetOrigin (void) const

void	SetOrigin (const AnchorLocation &anchor, const float offsetX, const float offsetY)

void	SetOrigin (const AnchorLocation &anchor, const tbMath::Vector2 &offset=tbMath::Vector2::Zero())

void	SetOrigin (const float originX, const float originY)

void	SetOrigin (const tbMath::Vector2 &origin)

float	GetDepth (void) const

void	SetDepth (const float newDepth)

const tbMath::Vector2 &	GetScale (void) const

void	SetScale (const float scale)

void	SetScale (const tbMath::Vector2 &scale)

void	SetScale (const float scaleX, const float scaleY)

tbMath::Angle	GetRotation (void) const

void	SetRotation (const tbMath::Angle &angle)

void	SetScroll (const float scroll)

void	SetScroll (const float scrollX, const float scrollY)

bool	IsRelative (void) const

const Color &	GetColor (void) const

float	GetWidth (void) const

float	GetHeight (void) const

float	GetScaledWidth (void) const

float	GetScaledHeight (void) const

tbMath::Vector2	GetAnchorPosition (const tbGraphics::AnchorLocation &anchor, const float offsetX, const float offsetY) const

tbMath::Vector2	GetAnchorPosition (const tbGraphics::AnchorLocation &anchor, const tbMath::Vector2 &offset=tbMath::Vector2::Zero()) const

bool	UnstableIsPointContained (const tbMath::Vector2 &point) const

Protected Member Functions
virtual void	OnSimulate (void) override

virtual void	OnUpdate (const float deltaTime) override

virtual void	OnRender (void) const override

virtual void	OnOpen (void) override

virtual void	OnClose (void) override

tbGraphics::Sprite	RenderBeforeScene (void) const

tbGraphics::Sprite	RenderAfterScene (void) const

Protected Member Functions inherited from TurtleBrains::Game::GameScene
virtual void	OnRuntimeReload (void)

Protected Member Functions inherited from TurtleBrains::Graphics::Graphic
virtual void	ApplyTransform (void) const

virtual void	PopTransform (void) const

Friends
class	GameScene

Additional Inherited Members
Public Types inherited from TurtleBrains::Game::EntityManager
typedef std::list< Entity * >	EntityList

Static Public Member Functions inherited from TurtleBrains::Game::GameScene
static bool	IsTransitionPlaying (void)

static void	ChangeToScene (GameScene &gameScene)

static void	ChangeToScene (GameScene &gameScene, std::unique_ptr< TransitionScene > &&transitionScene)

static void	PerformFrame (const float deltaTime)

static void	PerformFrame (GameScene &gameScene, const float deltaTime)

Member Function Documentation

◆ OnClose()

virtual void TurtleBrains::Game::TransitionScene::OnClose ( void )

overrideprotectedvirtual

This will be called when the scene has ended and is no longer active in any manner, all resources should be cleaned up until the scene is opened again.

Reimplemented from TurtleBrains::Game::GameScene.

◆ OnOpen()

virtual void TurtleBrains::Game::TransitionScene::OnOpen ( void )

overrideprotectedvirtual

This will be called just before the scene is actually activated so that any resources can be created or acquired for the scene to display correctly. This OnOpen() should be called to reset the accumulated simulation time just in case there had been some time remaining from a previous activation.

Reimplemented from TurtleBrains::Game::GameScene.

◆ OnRender()

virtual void TurtleBrains::Game::TransitionScene::OnRender ( void ) const

overrideprotectedvirtual

Note: Special considerations here! PAY ATTENTION. You will want to call TransitionScene::OnRender() to render the before/after scene targets. This however does NOT call the GameScene::Render() which would render any Graphics added to the TransitionScene; since these may want to be AFTER the targets are handled by a child of TranstitionScene implementation. All this is to say the derived classes may need to call BOTH TransitionScene::OnRender() { do stuff with targets } then GameScene::OnRender().

Reimplemented from TurtleBrains::Game::GameScene.

◆ OnSimulate()

virtual void TurtleBrains::Game::TransitionScene::OnSimulate ( void )

overrideprotectedvirtual

Called zero to N times per frame as simulated time accumulates. This is where game logic should live as OnSimulate() is called at a fixed rate. By default will be called at 100hz, 100 times per second with a fixed time step of 10ms or 0.01f seconds. This rate can be changed with the SetSimulateStepsPerSecond() function.

Reimplemented from TurtleBrains::Game::GameScene.

◆ OnUpdate()

virtual void TurtleBrains::Game::TransitionScene::OnUpdate ( const float deltaTime )

overrideprotectedvirtual

Called once per frame every frame to check for any Input events or update things that are dependent on the frame / wall timer. Game logic does not generally belong in the Update function as OnSimulate() is the fixed time step for more deterministic gameplay.

Parameters

deltaTime The number of seconds that has passed on the wall clock since the last frame called OnUpdate(). This value will be capped, so if the frame-rate is really bad deltaTime could be lower than the actual wall-time.

Reimplemented from TurtleBrains::Game::GameScene.
