TurtleBrains::Game::EntityBehaviorInterface Class Reference

#include <tb_entity_behavior_interface.hpp>

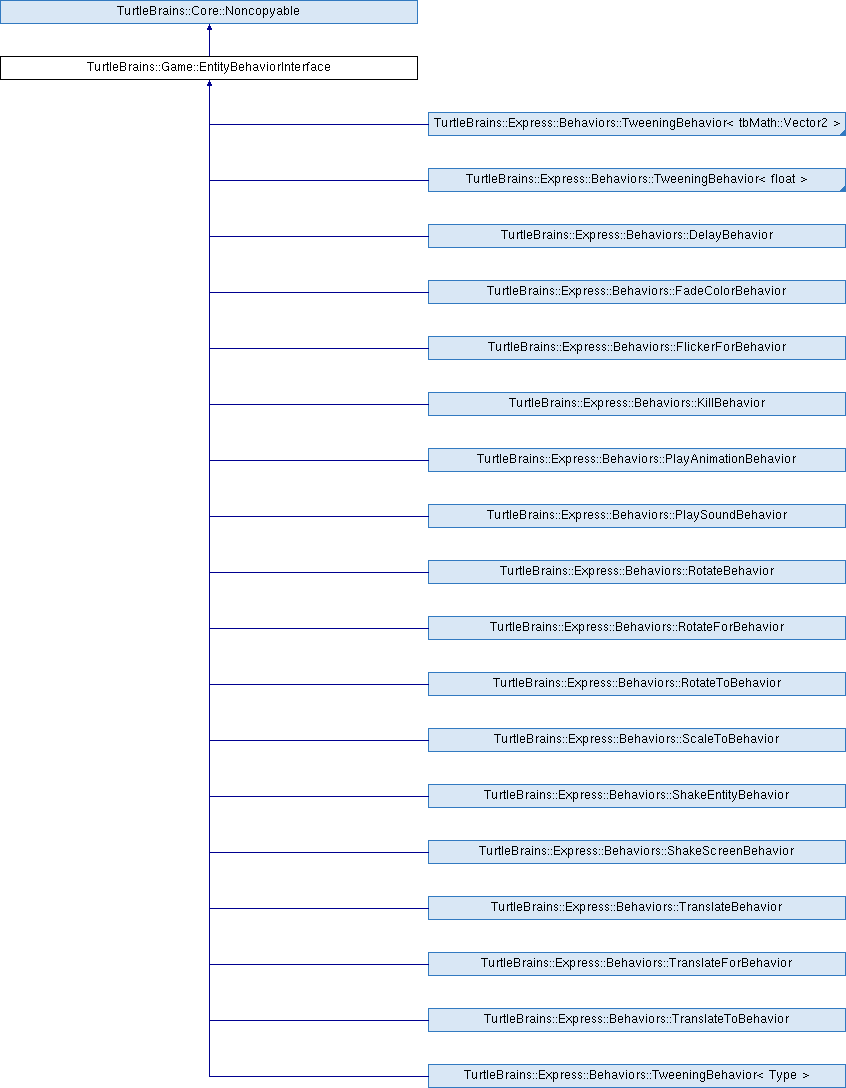

Inheritance diagram for TurtleBrains::Game::EntityBehaviorInterface:

Public Member Functions
	EntityBehaviorInterface (Entity &entity)
virtual	~EntityBehaviorInterface (void)=0

Protected Member Functions
virtual void	OnAdd (void)
virtual void	OnRemove (void)
virtual void	OnPause (void)
virtual void	OnResume (void)
virtual void	OnSimulate (void)
virtual void	OnUpdate (const float deltaTime)
virtual void	OnRender (void) const
virtual void	OnCollide (const Entity &withOther)

Protected Attributes
Entity &	mEntity

Friends
class	Entity

Detailed Description

The EntityBehaviorInterface provides an interface to create small behavioral states for an Entity that can be reused and applied on the Entity's behavior stack.

Constructor & Destructor Documentation

EntityBehaviorInterface()

TurtleBrains::Game::EntityBehaviorInterface::EntityBehaviorInterface ( Entity &  entity )

explicit

Constructs an entity behavior.

~EntityBehaviorInterface()

virtual TurtleBrains::Game::EntityBehaviorInterface::~EntityBehaviorInterface ( void  )

pure virtual

Destructs an entity behavior which currently (TurtleBrains v0.2.0) does not have any resources to clean up after.

Member Function Documentation

OnAdd()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnAdd ( void  )

protectedvirtual

This is invoked when the behavior is pushed onto the entities behavior stack, pausing the currently active behavior. This behavior is now the active behavior and will be paused if that changes.

OnCollide()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnCollide ( const Entity &  withOther )

protectedvirtual

This is invoked when the Entity collides/intersects another entity and the behavior is at the top of the entities behavior stack.

OnPause()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnPause ( void  )

protectedvirtual

This is invoked when the behavior is currently active and a new behavior gets pushed on becoming the new active behavior. OnResume() will be invoked once the behavior becomes active once again.

Reimplemented in TurtleBrains::Express::Behaviors::ShakeEntityBehavior.

OnRemove()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnRemove ( void  )

protectedvirtual

This is invoked just as the behavior is being removed from the entity stack.

Reimplemented in TurtleBrains::Express::Behaviors::TweeningBehavior< Type >, TurtleBrains::Express::Behaviors::TweeningBehavior< tbMath::Vector2 >, TurtleBrains::Express::Behaviors::TweeningBehavior< float >, TurtleBrains::Express::Behaviors::TranslateToBehavior, TurtleBrains::Express::Behaviors::TranslateTweenBehavior, TurtleBrains::Express::Behaviors::ScaleTweenBehavior, TurtleBrains::Express::Behaviors::RotateTweenBehavior, TurtleBrains::Express::Behaviors::FlickerForBehavior, and TurtleBrains::Express::Behaviors::ShakeEntityBehavior.

OnRender()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnRender ( void  ) const

protectedvirtual

This is invoked when the Entity is visible and rendered and when the behavior is at the top of the entities behavior stack. Called exactly once per frame.

OnResume()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnResume ( void  )

protectedvirtual

This is invoked when the behavior is currently paused and the active behavior gets popped off the stack letting this behavior become active again.

Reimplemented in TurtleBrains::Express::Behaviors::TranslateTweenBehavior, TurtleBrains::Express::Behaviors::ScaleTweenBehavior, TurtleBrains::Express::Behaviors::RotateTweenBehavior, TurtleBrains::Express::Behaviors::FadeColorBehavior, TurtleBrains::Express::Behaviors::ShakeEntityBehavior, TurtleBrains::Express::Behaviors::ShakeScreenBehavior, TurtleBrains::Express::Behaviors::PlaySoundBehavior, and TurtleBrains::Express::Behaviors::PlayAnimationBehavior.

OnSimulate()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnSimulate ( void  )

protectedvirtual

This is invoked when the Entity is activated and simulated and when the behavior is at the top of the entities behavior stack. Called 0 to N times per frame.

Reimplemented in TurtleBrains::Express::Behaviors::TweeningBehavior< Type >, TurtleBrains::Express::Behaviors::TweeningBehavior< tbMath::Vector2 >, TurtleBrains::Express::Behaviors::TweeningBehavior< float >, TurtleBrains::Express::Behaviors::TranslateForBehavior, TurtleBrains::Express::Behaviors::TranslateToBehavior, TurtleBrains::Express::Behaviors::TranslateTweenBehavior, TurtleBrains::Express::Behaviors::TranslateBehavior, TurtleBrains::Express::Behaviors::ScaleTweenBehavior, TurtleBrains::Express::Behaviors::ScaleToBehavior, TurtleBrains::Express::Behaviors::RotateForBehavior, TurtleBrains::Express::Behaviors::RotateTweenBehavior, TurtleBrains::Express::Behaviors::RotateToBehavior, TurtleBrains::Express::Behaviors::RotateBehavior, TurtleBrains::Express::Behaviors::FadeColorBehavior, TurtleBrains::Express::Behaviors::ShakeEntityBehavior, TurtleBrains::Express::Behaviors::ShakeScreenBehavior, TurtleBrains::Express::Behaviors::PlaySoundBehavior, TurtleBrains::Express::Behaviors::PlayAnimationBehavior, TurtleBrains::Express::Behaviors::FlickerForBehavior, TurtleBrains::Express::Behaviors::KillBehavior, and TurtleBrains::Express::Behaviors::DelayBehavior.

OnUpdate()

virtual void TurtleBrains::Game::EntityBehaviorInterface::OnUpdate ( const float  deltaTime )

protectedvirtual

This is invoked when the Entity is activated and updated and when the behavior is at the top of the entities behavior stack. Called exactly once per frame.

Member Data Documentation

mEntity

Entity& TurtleBrains::Game::EntityBehaviorInterface::mEntity

protected

The Entity which the behavior should work magic on. Some behaviors may need a more specific Entity reference and that should be held and contained. For instance a behavior specific to a PlayerEntity would contain PlayerEntity& mPlayerEntity; and work the specific magic on the player.
